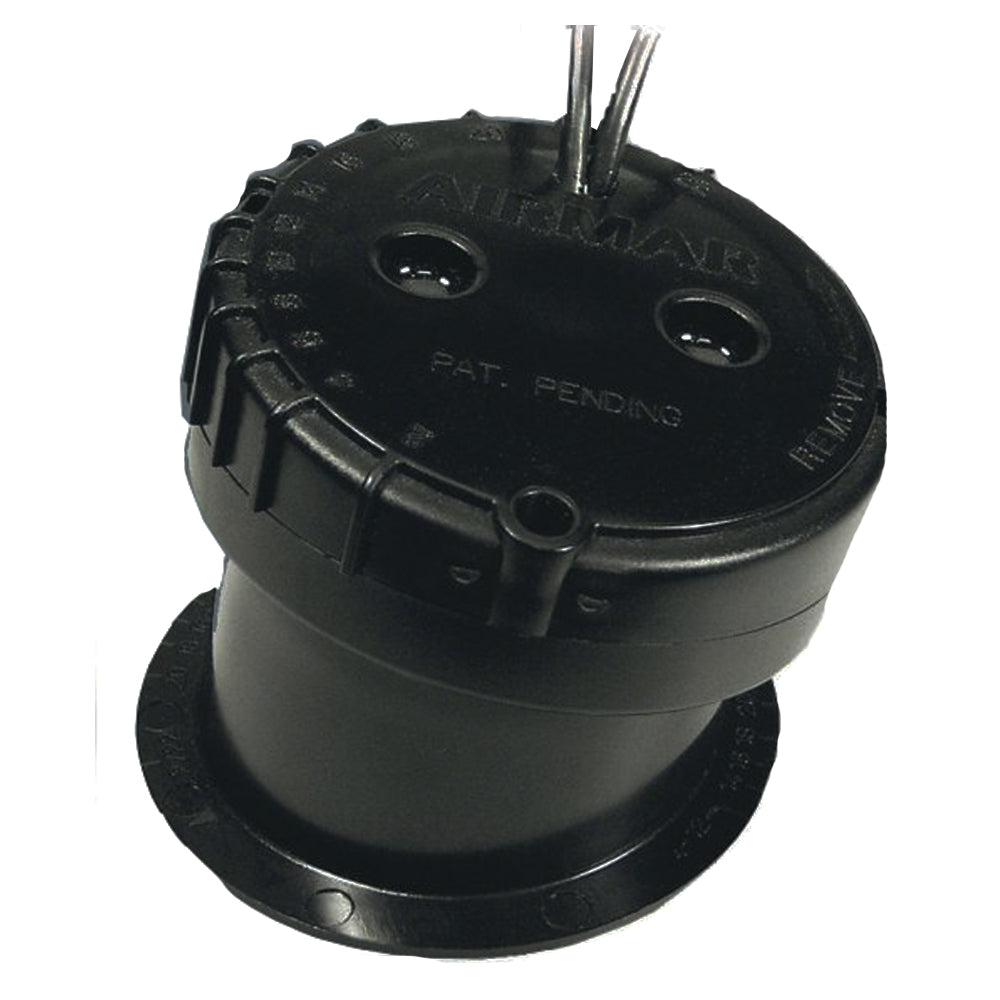

Adjustable In-Hull Transducer
600 Watt adjustable angled in hull transducer. (P79)
Compatible with the following Echo Sounders:
SL Series: SL755RC, SL760RC , SL1250, and SL1250RC
hsb2 Plus Series: L755RC, L760, L760RC, L1250,and L1250RC
hsb2 HDFI Series: DSM250, L770D, L770DRC, L1260D, and L1260DRC
Compatible hull material: fiberglass
Max Power: 600 W
Frequency: 200/50 kHz
Beam Angles: 200 kHz 11 50 kHz 45
Features:
- Depth only.
- Can be used in conjunction with the E66019 ST69 speed and temperature sensor
- Easily adjusts to any deadrise angle up to 22
- Transmits sound waves directly at the bottom so strong echoes are reflected back to the transducer
- Can be removed in seconds for servicing or storage
- Only the base piece is bonded to the hull. There is no adhesive layer under the transducer face to absorb sound energy
- Simplifies in-hull installation
30ft (10m) Cable
Specifications:
- Temperature: No
- Speed Included: No
- Mounting Style: In-Hull
- Imagining: Standard
- Chirp: No
- Cable Length (Feet): 30'
- Box Dimensions: 4"H x 8"W x 10"L WT: 2.8 lbs
- UPC: 023193660080
Owner's Manual (pdf)
Brochure (pdf)
